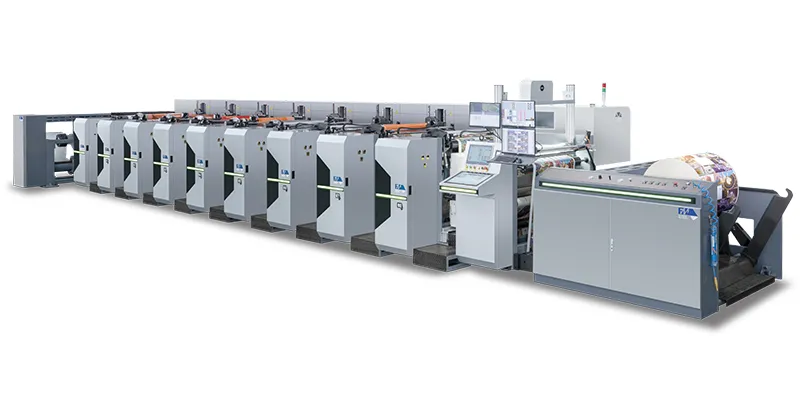

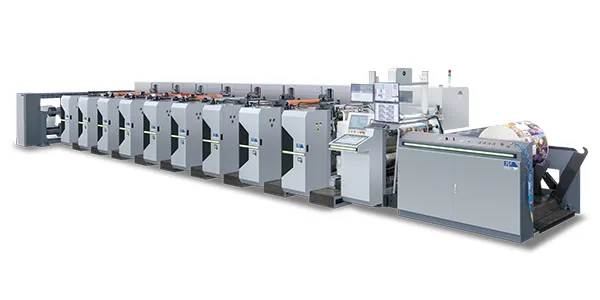

Flexo Printing Machine
Flexographic printing is a high-speed rotary process that uses flexible relief plates to transfer ink onto diverse substrates. Known for its versatility and eco-friendly water-based inks, it provides consistent color reproduction and exceptional durability. It is the preferred solution for large-scale production of paper cups, food packaging, and labels.
Our flexo printing press is designed for precision printing on paper, film, and non-woven materials. Its streamlined design delivers reduced setup times and ensures stable registration for complex, multi-color packaging designs.
Features
- Quick-changeover: Features a quick-change sleeve system for plate cylinders, significantly reducing job changeover times and is versatile for handling substrates f different sizes.
- Drive System: Full servo drive eliminates gear pitch limitations for repeat lengths, providing superior flexibility for diverse job specifications.
- Ink Compatibility: Compatible with both water-based and UV inks. Supports independent or hybrid printing modes to accommodate a wider range of substrates and graphic requirements.
- Automation & Yield: Integrated digital inspection, digital plate mounting, and pre-registration systems reduce operator dependence and significantly increase production yield.
Specifications
| Model | FM-TS-650-1450 | |||
| Max. Web Width | 870mm | 1020mm | 1270mm | 1370mm |
| Max. Printing Width | 850mm | 1000mm | 1250mm | 1350mm |
| Printing Repeat | 350–1100mm | 350–1100mm | 350–1100mm | 350–1100mm |
| Max. Unwind Diameter | 1524mm | 1524mm | 1524mm | 1524mm |
| Max. Rewind Diameter | 1524mm | 1524mm | 1524mm | 1524mm |
| Max. Printing Speed | 300m/min | 300m/min | 300m/min | 300m/min |
| Drying Method | Hot Air Drying/ IR (Infrared) Drying/ UV LED Curing | |||
| Applicable Ink | Water-based and UV inks | |||
| Power Supply | 380V 3PH 50Hz | |||
| Applicable Substrates | Art & Coated Paper, Paper, Aluminum Foil, BOPP/PET Film, Cardstock/Kraft Paper, and Laminated/PE Coated Paper | |||
| Applicable Material Weight | 80–350gsm | |||
| Thickness of Plate | 1.7mm | |||
| Plate Mounting Tape Thickness | 0.38mm/0.5mm | |||
| Machine Frame | Cast alloy side frame | |||
| Accuracy of Registration | ±0.1mm (Constant Speed); ±0.12mm (Acceleration/Deceleration) | |||
| Tension Control Range | 40–110kg | |||
| Tension Accuracy | ±0.5kg | |||
Machine Details Display

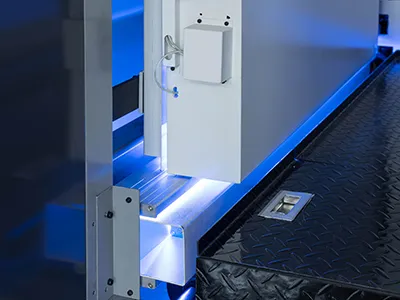

IR (Infrared) Drying/ UV LED Curing

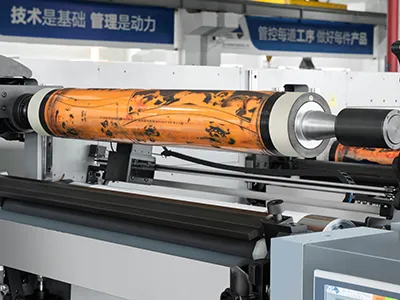

Quick-change sleeve system for plate cylinders

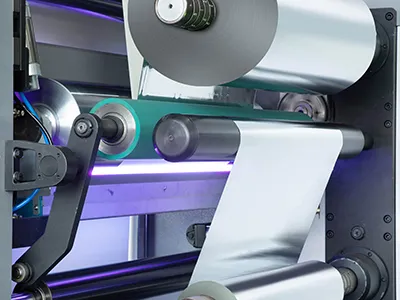

Cold Foiling Unit

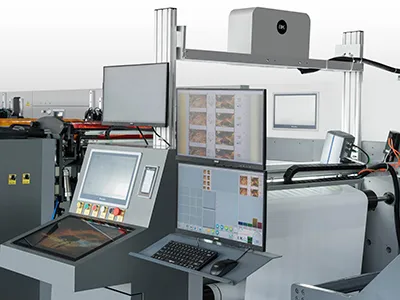

Digital Inspection System
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
