EPE Foam Coating

EPE Foam Coating

  • Coating Thickness0.01-0.10mm
  • Main Unwinding MaterialEPE, Fabric, Paper
  • 2nd Unwinding MaterialFilm, Foil
  • Applicable ResinLDPE, PP
  • Design Line Speed40m/min
Specifications
Model JDLM600/60 JDLM1300/80 JDLM1700/90
Screw Diameter Ø60mm Ø80mm Ø90mm
Product Width 200-400mm 600-1200mm 900-1600mm
Coating Thickness 0.01-0.10mm
Main Unwinding Material EPE, Fabric, Paper
2nd Unwinding Material Film, Foil
Applicable Resin LDPE, PP
Design Line Speed 40m/min 40m/min 40m/min
Max. Extrusion Output 60kg/h 120kg/h 140kg/h
Main Motor Power 11kW 22.5kW 30kW
Total power 40kW 100kW 130kW
Main Unwind Diameter ≤Ø1200mm
2nd Unwind Diameter ≤Ø500mm
Rewind Diameter ≤Ø1200mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

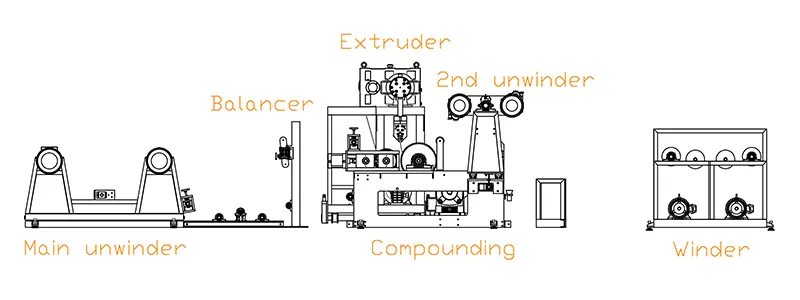

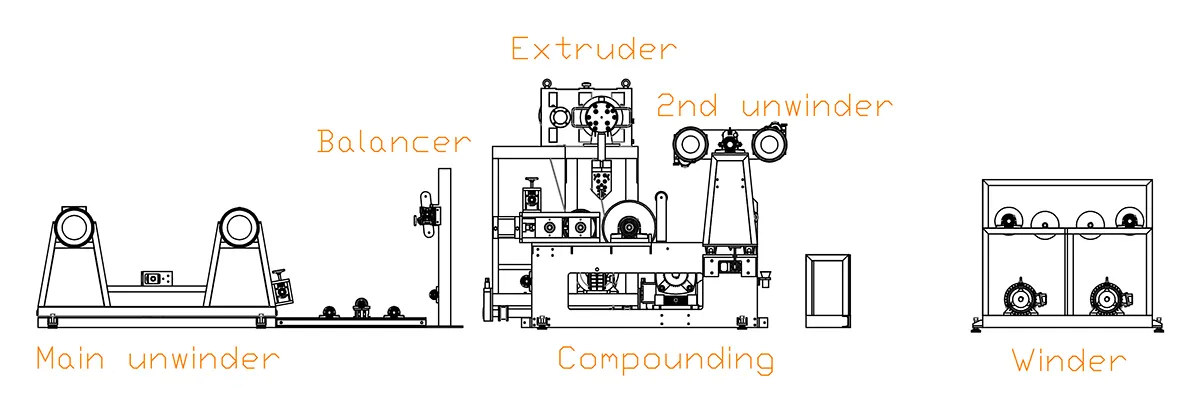

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
