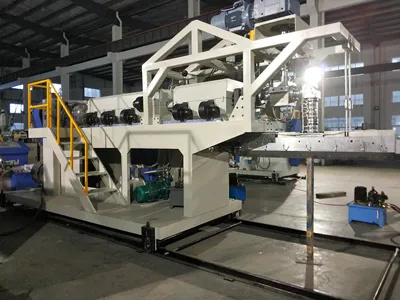

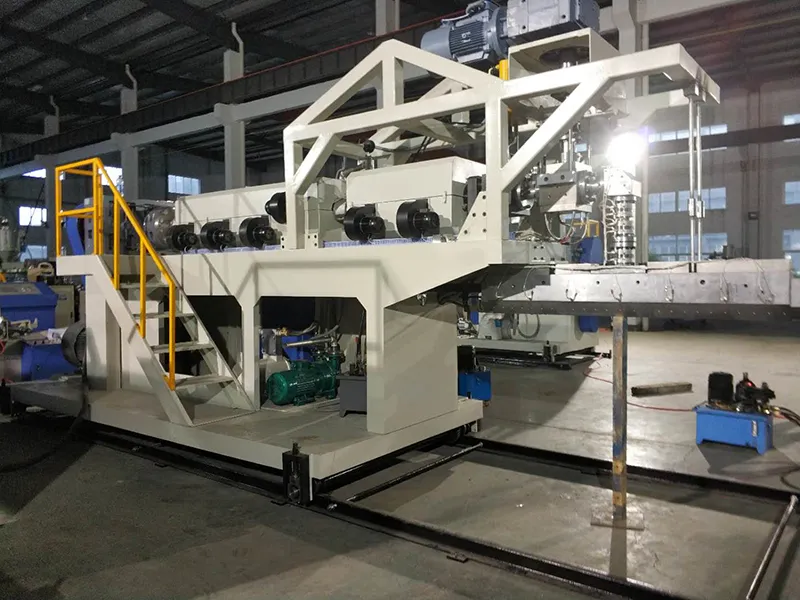

Biodegradable PLA/PBAT Lamination

Biodegradable PLA/PBAT Lamination

  • Lamination Thickness0.01-0.10mm
  • Main Unwinding MaterialPaper
  • 2nd Unwinding MaterialFilm, Foil
  • Applicable ResinLDPE, PP, PLA, PBAT
  • Design Line Speed210m/min
Specifications
Model JDLM1000/90 JDLM1300/100 JDLM1700/120
Screw Diameter Ø90mm Ø100mm Ø100mm
Product Width 400-800mm 600-1200mm 700-1600mm
Lamination Thickness 0.01-0.10mm
Main Unwinding Material Paper
2nd Unwinding Material Film, Foil
Applicable Resin LDPE, PP, PLA, PBAT
Design Line Speed 210m/min
Working Speed 80~120m/min (depending on substrate and coating material)
Max. Extrusion Output 150kg/h 220kg/h 220kg/h
Main Motor Power 45kW 75kW 75kW
Total Power 150kW 160kW 180kW
Main Unwind Diameter ≤Ø1200mm
2nd Unwind Diameter Customized (Optional)
Rewind Diameter ≤Ø1300mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

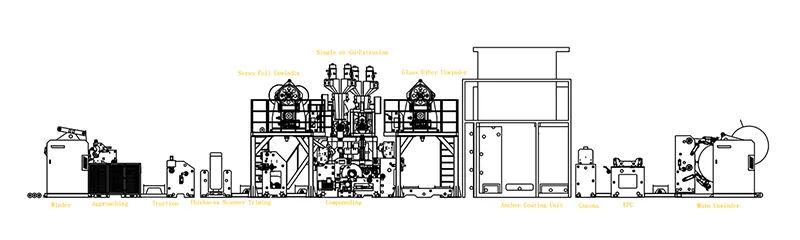

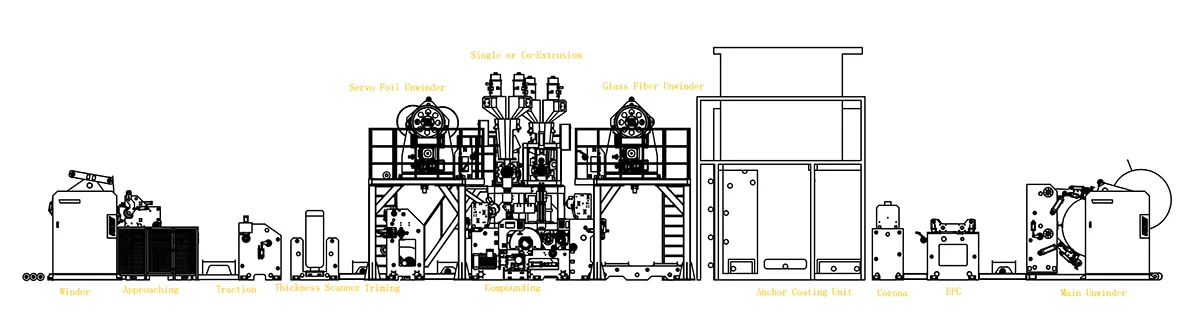

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
