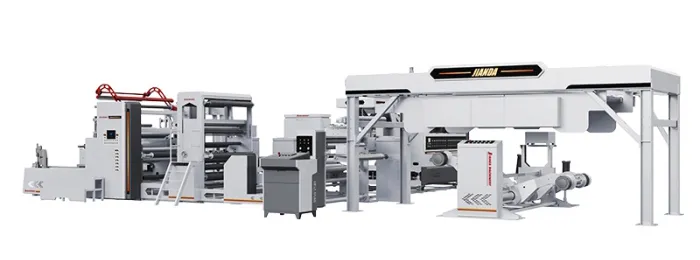

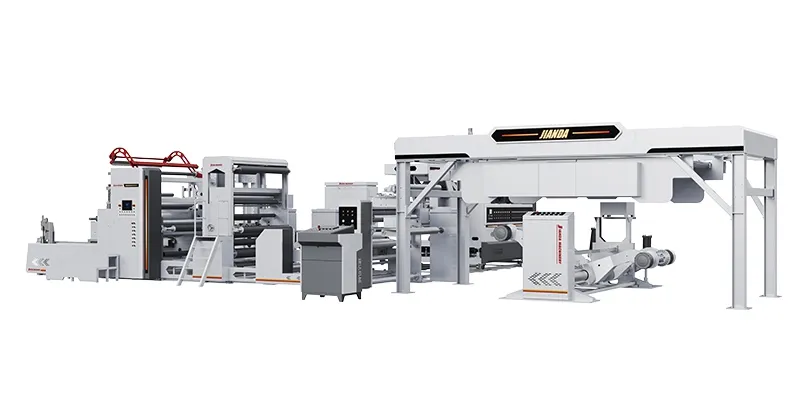

Paper Coating and Laminating
G3 Double Sided, 270m/min
Reaching processing speeds of up to 240 m/min, these double-sided extrusion coating and laminating lines are mainly used for high GSM paper coating applications. LDPE, PP, and other coating-grade resins are used to produce coated and laminated paper materials for medical packaging, food packaging, office and document packaging, construction-related packaging, and other paper-based composite uses. Their configuration is better suited to high GSM paper that requires good stiffness and stable running performance during continuous production.
- Centralized PLC and HMI control supports coordinated operation through integrated mechanical, electrical, and pneumatic design.
- A high-precision imported deckle-free die head helps maintain stable coating quality.
- The die head lifting system operates automatically, which makes setup and adjustment more convenient.
- The high-speed compounding unit is designed for efficient material mixing.
- Material handling is supported by a fast hydraulic screen changer together with an automatic feeding structure.
- A dry lamination system can be added when the production process requires dry lamination capability.
- The extrusion section can be configured with single, twin, or multiple extruders, including multilayer co-extrusion arrangements.
| Model | ||
| Product Width | 600–1200mm | 900–1600mm |
| Applicable Substrate | High GSM Paper (65–450g/m²) | |
| Design Speed | 270m/min | |
| Working Speed | 180–240m/min (depending on substrate and coating material) | |
| Main Motor Power | 55kW*2 | |
| Total Power | Approx. 290kW | Approx. 320kW |
| Unwind Diameter | ≤Ø1500mm | |
| Rewind Diameter | ≤Ø1600mm | |
| Power Supply | 380V, 3 Phase, 4 Wire, 50Hz | |
Note:
Specifications and machine configurations may be updated as part of ongoing product improvement. Final machine design and technical data are subject to confirmation. Equipment can also be customized to meet different production requirements and specification levels.
-

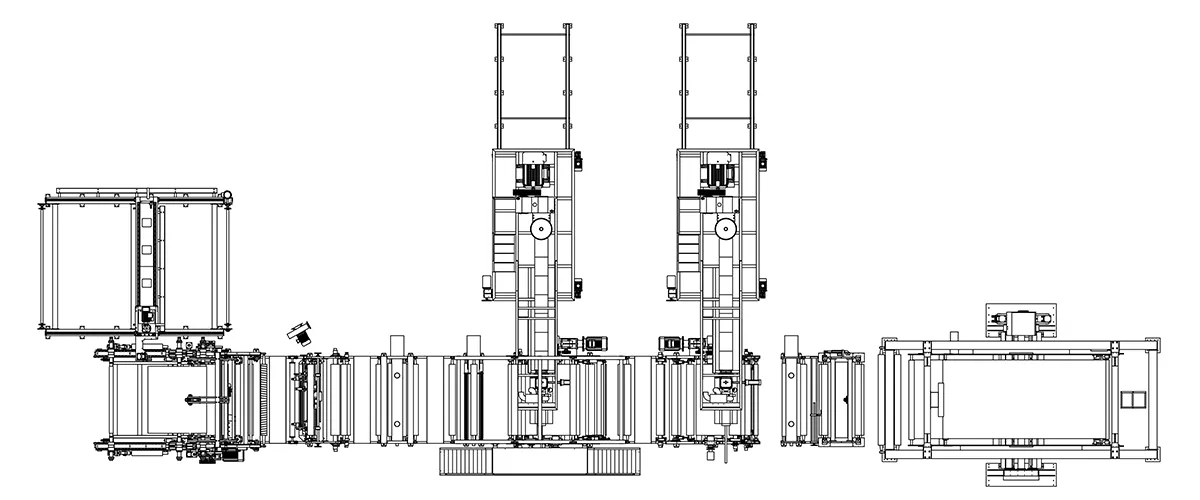

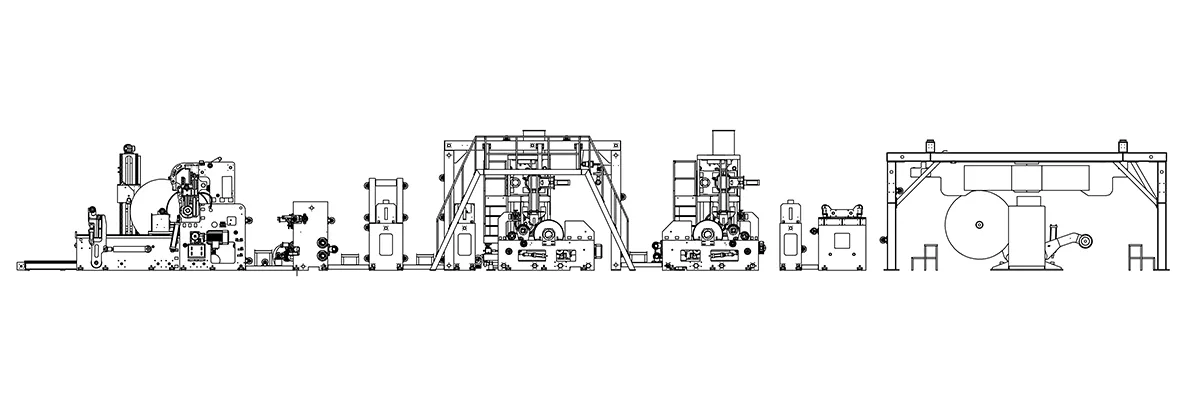

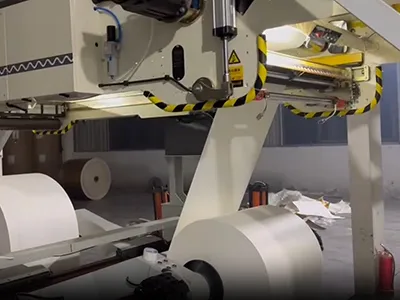

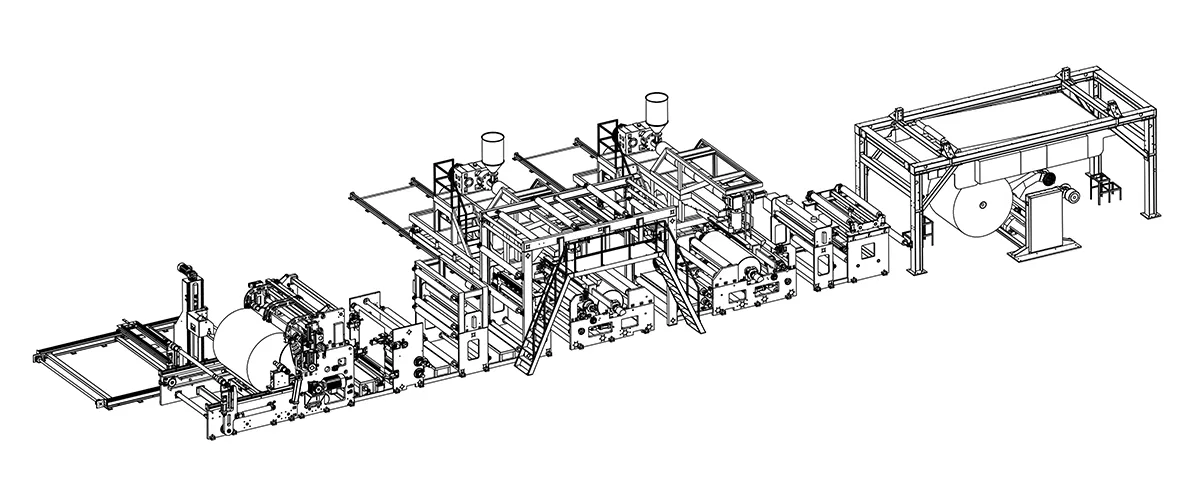

Unwinding -
Web guiding -
Corona treatment -
Secondary unwinding -
Lamination -

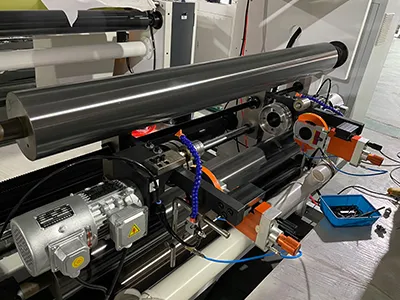

Edge trimming -
Rewinding
PLC Control Panel

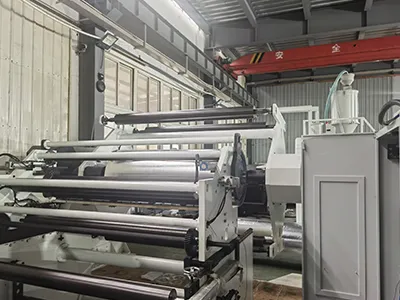

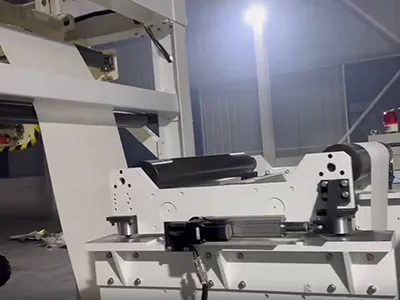

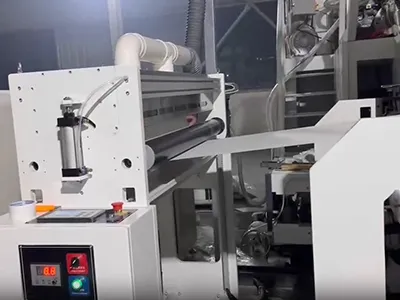

Guide Roller

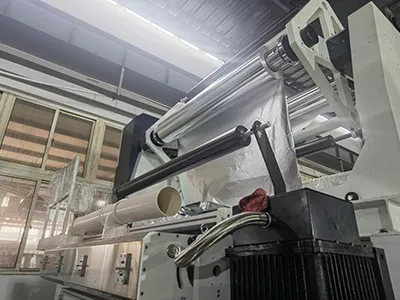

Secondary Unwinding Unit

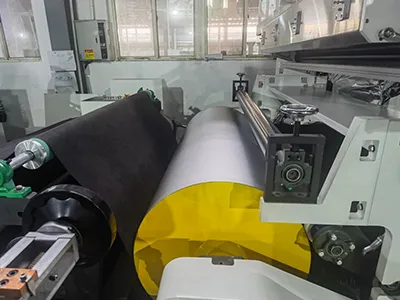

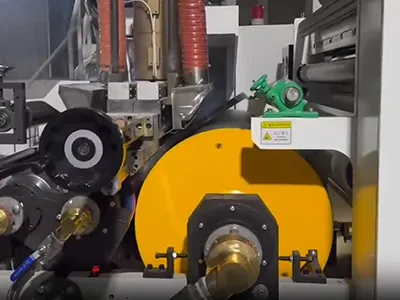

Lamination Unit

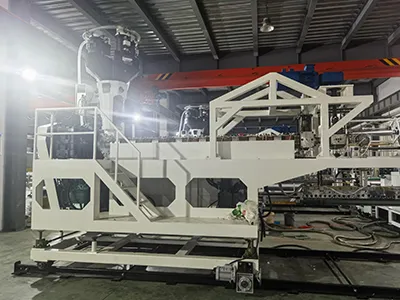

Extruder

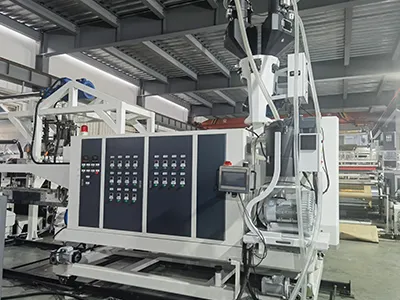

Extruder Carriage

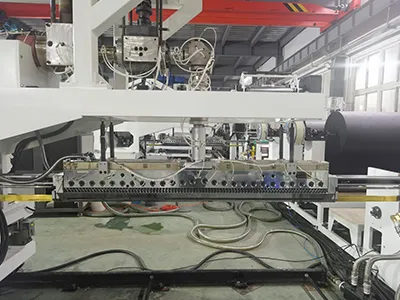

Die Head

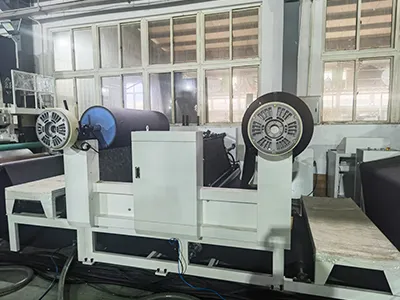

Dual-Station Unwinder

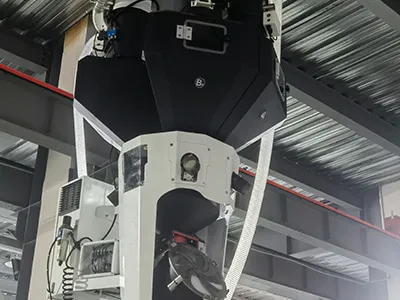

Automatic Dosing System

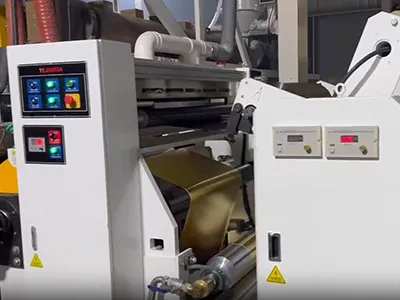

Temperature Control Panel

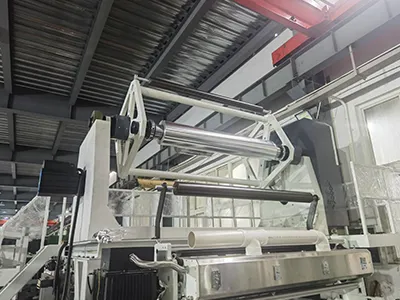

Center-Driven Secondary Unwinder

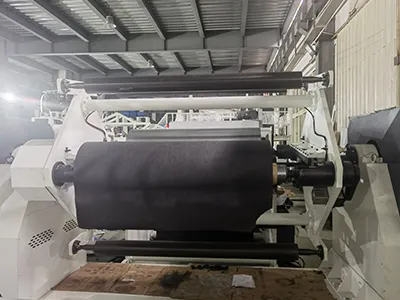

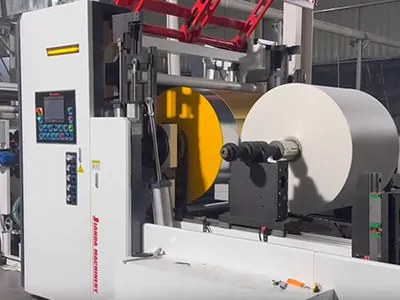

Center-Driven Rewinder
