Extrusion Coating and Laminating Line
Extrusion Coating and Laminating Line
Video

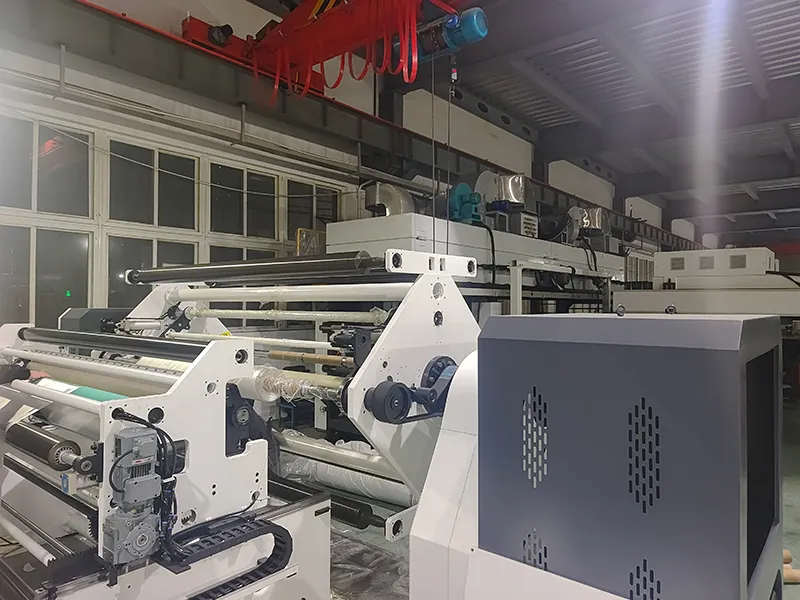

Foil Substrate Lamination

Foil Substrate Lamination

  • Lamination Thickness0.01-0.10mm
  • Main Unwinding MaterialFilm, Foil
  • 2nd Unwinding MaterialFilm, Foil
  • Applicable ResinLDPE, PP, EVA, EAA, Surlyn, Necurel
  • Design Line Speed300m/min
Specifications
Model JDLM1000/90 JDLM1450/100 JDLM2800/120
Screw Diameter Ø90mm Ø100mm Ø120mm
Product Width 400-900mm 700-1300mm 1600-2600mm
Lamination Thickness 0.01-0.10mm
Main Unwinding Material Film, Foil
2nd Unwinding Material Film, Foil
Applicable Resin LDPE, PP, EVA, EAA, Surlyn, Necurel
Design Line Speed 300m/min
Working Speed 80-250m/min (depending on substrate and coating material)
Max. Extrusion Output 150kg/h 220kg/h 360kg/h
Main Motor Power 45kW 75kW 110kW
Total power 160kW 180kW 240kW
Main Unwind Diameter Customized
2nd Unwind Diameter Customized (Optional)
Rewind Diameter ≤Ø1300mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

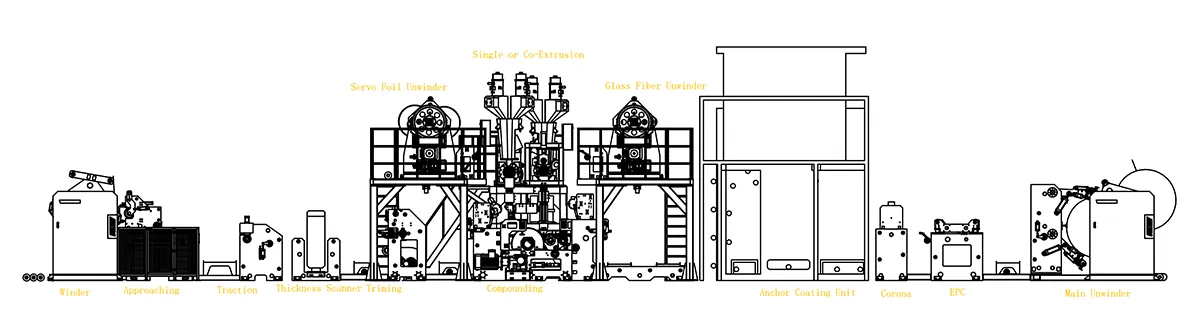

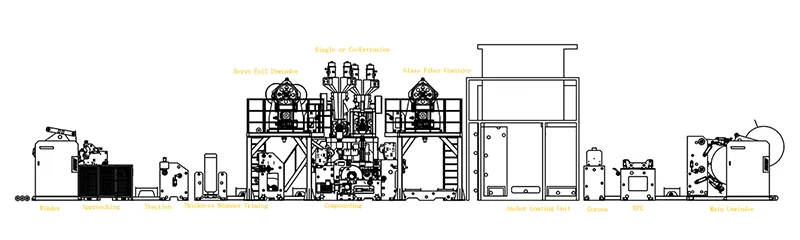

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
