Extrusion Coating and Laminating Line
Extrusion Coating and Laminating Line

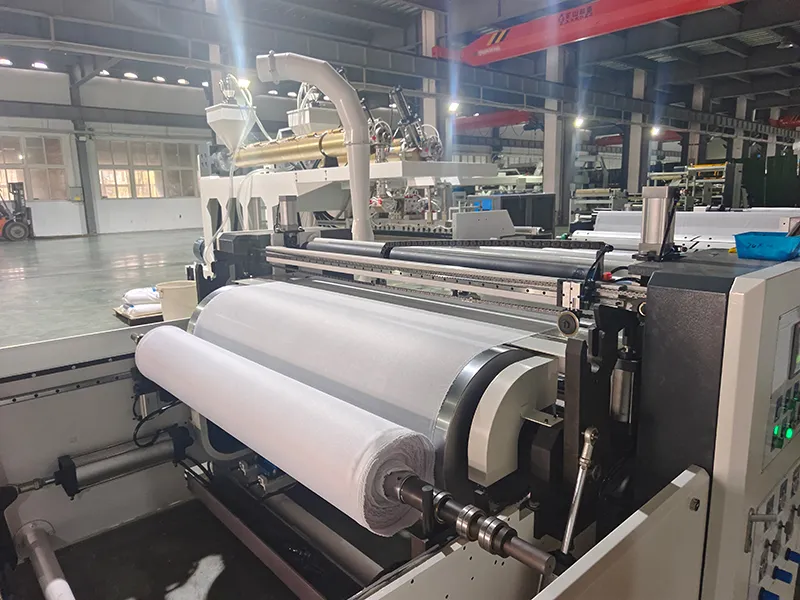

Flexible Tank Fabric Lamination

  • Lamination Thickness0.1-0.3mm
  • Main Unwinding MaterialFabric
  • 2nd Unwinding MaterialFilm, Foil, Fabric
  • Applicable ResinLDPE, PP
  • Design Line Speed30m/min
Specifications
Model JDLM1300/90 JDLM1700/100 JDLM2400/110
Screw Diameter Ø90mm Ø100mm Ø110mm
Product Width 600-1200mm 900-1600mm 1300-2200mm
Lamination Thickness 0.1-0.3mm
Main Unwinding Material Fabric
2nd Unwinding Material Film, Foil, Fabric
Applicable Resin LDPE, PP
Design Line Speed 30m/min
Working Speed 2-20m/min (depending on substrate and coating material)
Max. Extrusion Output 150kg/h 180kg/h 250kg/h
Main Motor Power 30kW 37kW 45kW
Total Power 120kW 140kW 210kW
Main Unwind Diameter ≤Ø1200mm
2nd Unwind Diameter ≤Ø500/1200mm (Optional)
Rewind Diameter ≤Ø1300mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

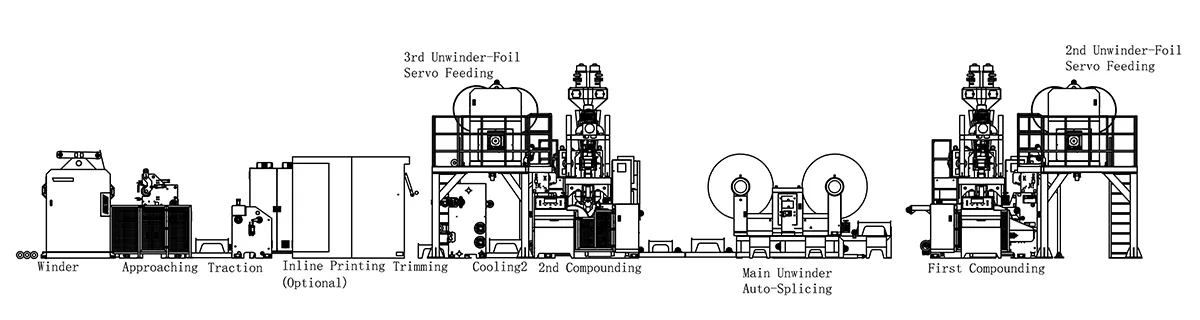

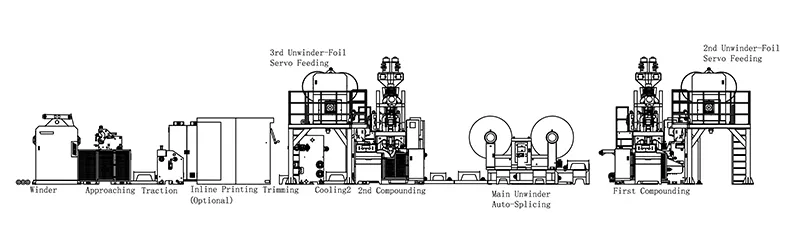

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
