Insulation Material Lamination

Insulation Material Lamination

  • Lamination Thickness0.01-0.10mm
  • Main Unwinding MaterialPaper, Fabric
  • 2nd Unwinding MaterialFilm, Foil
  • Applicable ResinLDPE, PP
  • Design Line Speed210m/min
Specifications
Model JDLM1300/100 JDLM1700/100 JDLM2400/110
Screw Diameter Ø100mm*2 Ø100mm*2 Ø110mm*2
Product Width 600-1200mm 900-1600mm 1300-2200mm
Lamination Thickness 0.01-0.10mm
Main Unwinding Material Paper, Fabric
2nd Unwinding Material Film, Foil
Applicable Resin LDPE, PP
Design Line Speed 210m/min
Working Speed 80-180m/min (depending on substrate and coating material)
Max. Extrusion Output 200kg/h each ply 200kg/h each ply 280kg/h each ply
Main Motor Power 37kW 37kW 55kW
Total Power 240kW 260kW 380kW
Main Unwind Diameter ≤Ø1200mm
2nd Unwind Diameter ≤Ø500mm (Optional)
Rewind Diameter ≤Ø1300mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

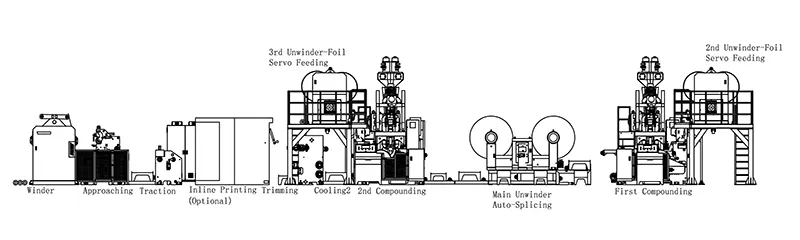

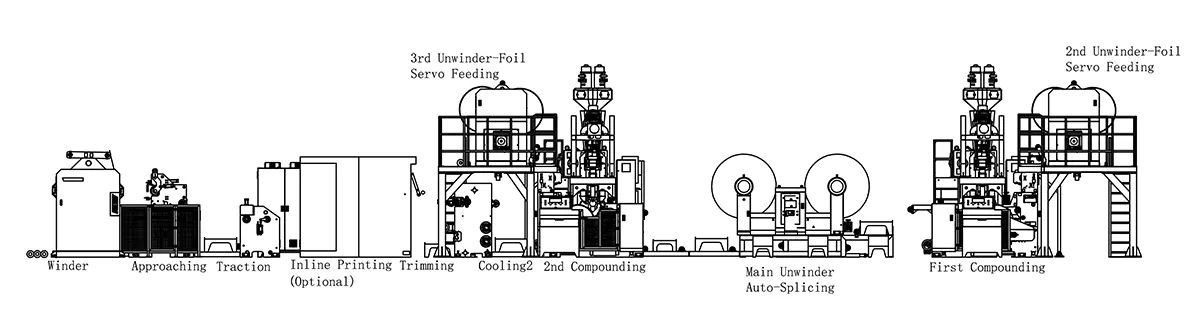

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
