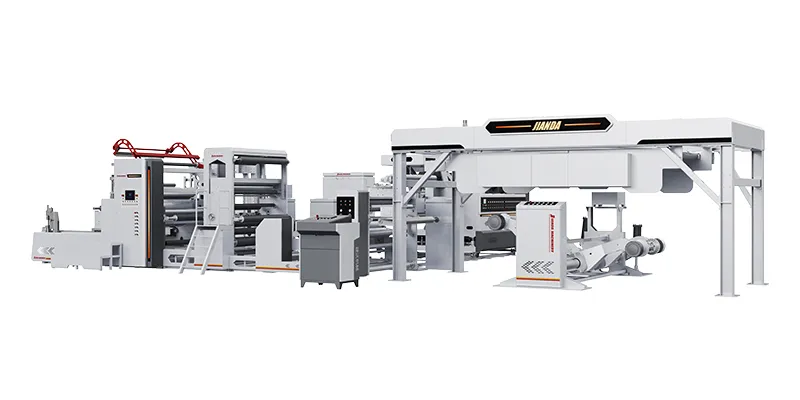

Paper Coating and Laminating
G3 Single Sided, 280m/min
Used mainly for high GSM paper coating, these single-sided extrusion coating and laminating lines can reach processing speeds of up to 240 m/min. Paper substrates are combined with coating-grade resins such as LDPE and PP to form laminated materials for medical packaging, food packaging, office and document packaging, construction-related packaging, and other paper-based composite applications. The overall coating and laminating setup is suitable for paper grades that require good stiffness and stable running conditions during continuous production.
- PLC touchscreen interface allows easy control of electrical, mechanical, and pneumatic systems together
- Imported die heads deliver precise, consistent results
- Automatic lift for the machine head simplifies setup and operation
- High-speed mixing unit ensures efficient material blending
- Hydraulic system quickly changes meshes, with automatic material feeding
- Can be equipped with a dry lamination module for additional processing
- Flexible extruder options: single, double, multi-extruder, and multi-layer co-extrusion
| Model | ||
| Product Width | 600-1200mm | 900-1600mm |
| Applicable Substrate | High GSM Paper (65–450g/m²) | |
| Design Speed | 280m/min | |
| Working Speed | 180–240m/min (depending on substrate and coating material) | |
| Main Motor Power | 55kW | |
| Total Power | Approx. 190kW | Approx. 210kW |
| Unwind Diameter | ≤Ø1500mm | |
| Rewind Diameter | ≤Ø1600mm | |
| Power Supply | 380V, 3 Phase, 4 Wire, 50Hz | |
Note:
Machine design and technical specifications may be changed without prior notice as part of ongoing product improvement. Customized configurations can also be provided to meet different production requirements and specification levels.
-

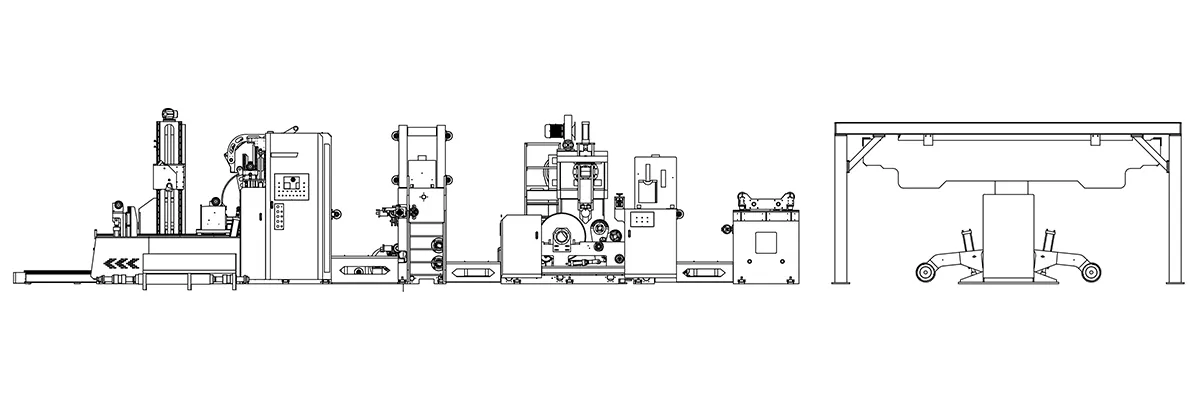

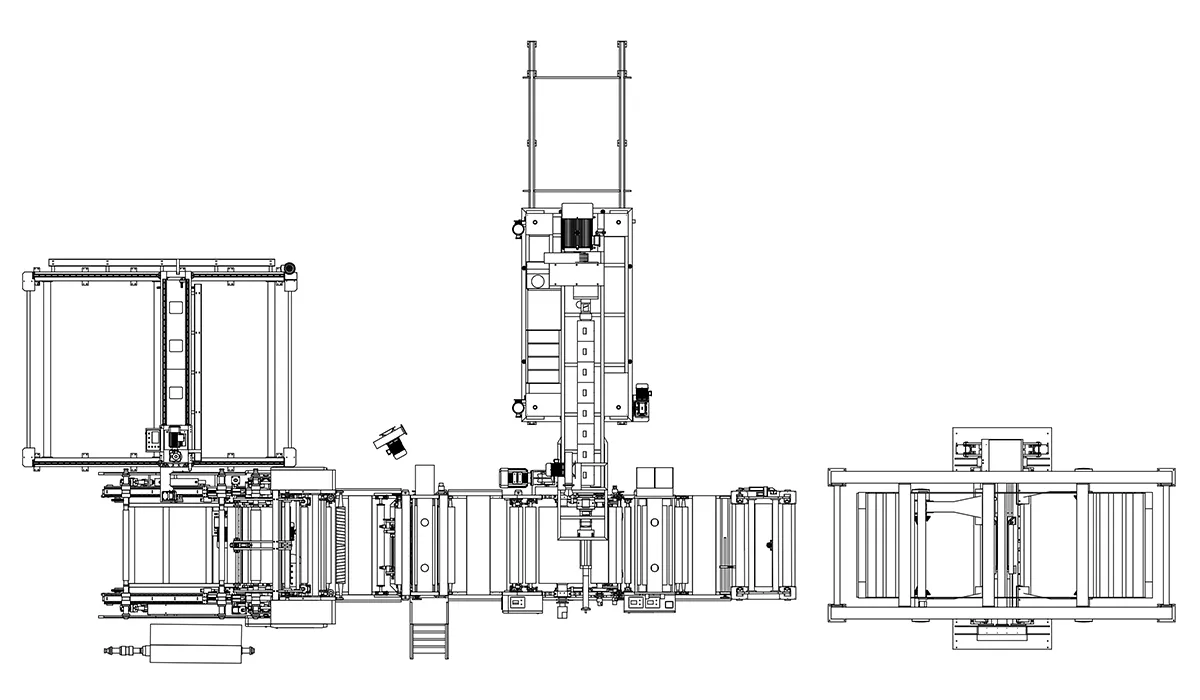

Unwinding -
Web guiding -
Laminating -
Second unwinding -
Film unwinding -
Rewinding
