Automatic Roll-Fed Die Cutter

Automatic roll-fed die cutting is the cornerstone of high-efficiency packaging converting. By transforming raw paper rolls into precisely cut and creased blanks in a single continuous pass, this process maximizes substrate utilization and ensures consistent quality for large-scale production.
Featuring operational stability, exceptional cutting accuracy, and safety features, our paper roll die cutting machine is a high-precision paper converting solution engineered to meet the rigorous demands of the printing and packaging industries, which allows to precisely cut paper rolls into blanks for paper cups, food containers, medicine boxes, and various paper products.

Specifications
Series ML970
Model 970x550 970x640 1080x640 1200x640
Max. Cutting Area 940×510 970×600 1050×600 1160×600
Cutting Accuracy ±0.20mm
Paper Weight Range 120-600g 120-600g 120-600g 120-600g
Production Capacity 120-140 strokes/min 120-140 strokes/min
Air Pressure 0.5MPa
Air Consumption 0.25m³/min
Max. Cutting Pressure 300T 300T 300T 300T
Weight 10T 12T 13T 14T
Max. Unwind Diameter 1600mm
Total Power 28kW
Power Consumption 15kW
Machine Dimensions 8000×2300×1900 10000×2300×1900
Series H970
Model 970x550 970x640 1080x640 1200x640
Max. Cutting Area 940×510 970×600 1050×600 1160×600
Cutting Accuracy ±0.15mm
Paper Weight Range 120-400g 120-400g 120-600g 120-600g
Production Capacity 110-200 strokes/min 110-180 strokes/min
Air Pressure 0.5MPa
Air Consumption 0.25m³/min
Max. Cutting Pressure 180T 180T 300T 300T
Weight 6.0T 6T 8T 8.5T
Max. Unwind Diameter 1600mm
Total Power 28kW
Power Consumption 12kW
Machine Dimensions 4500×2200×1800 4500×2400×1800 4500×2500×1800
Machine Details Display

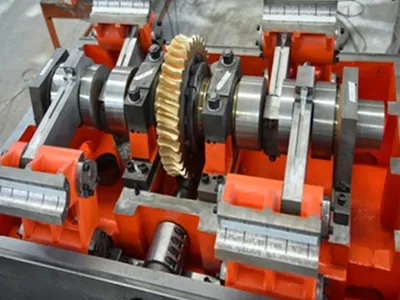

  • Drive & StructureDrive & Structure

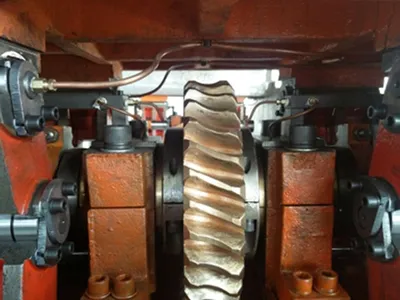

  • Forced Lubrication SystemForced Lubrication System
  • Power & SafetyPower & Safety

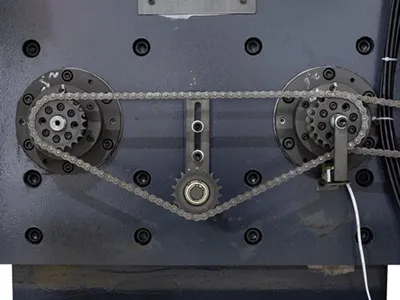

  • Motorized Pressure AdjustmentMotorized Pressure Adjustment

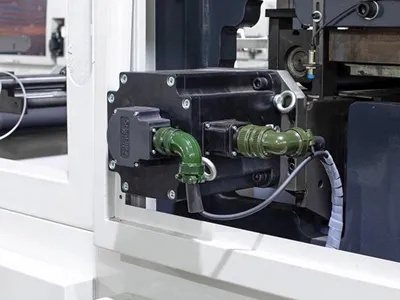

  • Servo RegistrationServo Registration

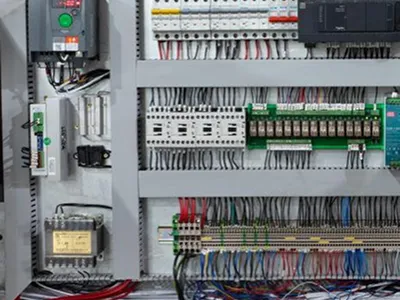

  • Integrated Electrical ControlIntegrated Electrical Control

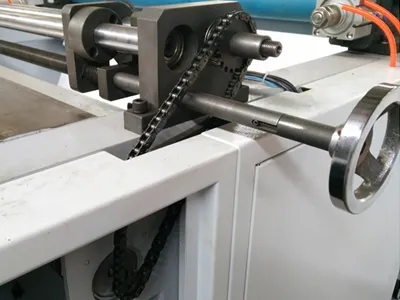

  • Motorized Web CorrectionMotorized Web Correction

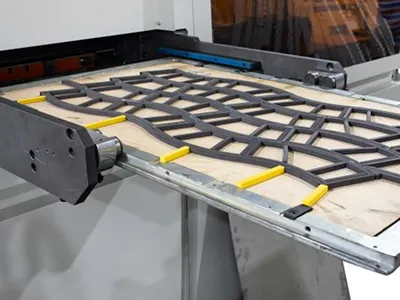

  • Pneumatic Die LockingPneumatic Die Locking

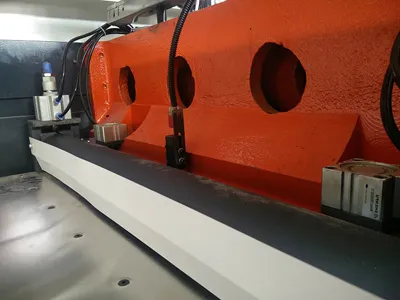

  • Paper Jam AlarmPaper Jam Alarm

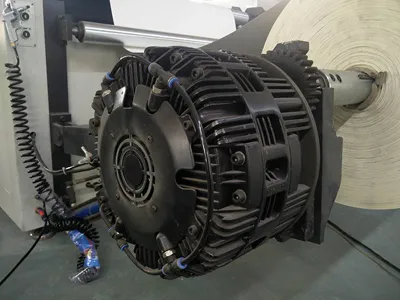

  • Pneumatic Roll StandPneumatic Roll Stand
  • Dual-Roller FeedingDual-Roller Feeding

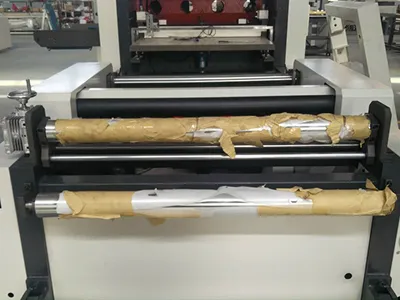

  • Multi-Stage DecurlerMulti-Stage Decurler
  • Photoelectric TrackingPhotoelectric Tracking

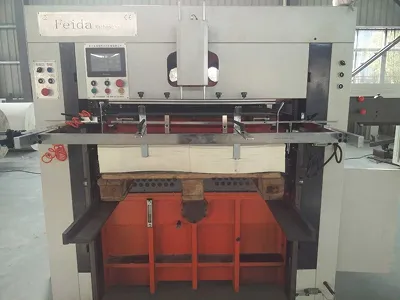

  • Automatic CollectionAutomatic Collection
