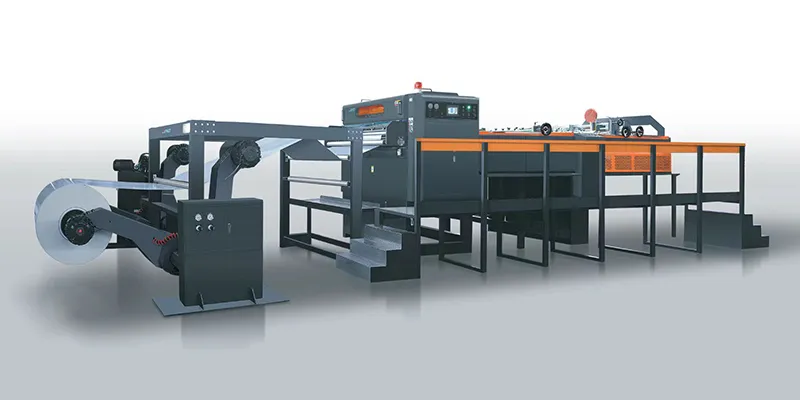

Dual Knife Rotary Paper Sheeter
A dual knife rotary sheeter utilizes synchronized twin rotary blades to cut moving paper webs with a scissor-like action. This design ensures square, clean edges on thick or delicate materials while maintaining high speeds. It is widely used in paper mills and printing houses to convert paperboard and specialty stocks into premium flat sheets.
We provide dual knife rotary sheeting machine for high-precision paper converting, focusing on stable operation and consistent cutting quality. It features a dual rotary spiral knife structure that minimizes cutting resistance, resulting in neat cross-sections and smooth material flow. This system enhances overall production efficiency without compromising the integrity of the finished sheets.
Features
- Precision Cutting System: Equipped with precision bearings and high-grade cutting knives to ensure accurate dimensional control.
- Sheet Flattening: Integrated with a decurling device to improve sheet flatness and maintain stable web tension.
- Material Versatility: Suitable for processing cardstock, art paper, kraft paper, and various packaging or printing substrates.
- User-friendly Operation: Features a touch-screen interface for streamlined operation, fault monitoring, and maintenance management.
- Industrial Reliability: Built to meet the demands of paper mills and printing enterprises for high-consistency and high-volume production.
Specifications
| Series | ZNSD-1400 | |
| Model | ||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.2mm | 1000mm±0.15mm |
| Cutting Speed | 0-350 cuts/min | 0-350 cuts/min |
| Total Machine Weight | 16000kgs | 17000kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | Up to 350m or 400 cuts/min | Up to 350m or 400 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1420mm | 1420mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.3m×2.5m | 15.5m×4.3m×2.5m |
| Max. Stack Height | 1600mm | 1600mm |
| Series | ZNSD-1700 | |
| Model | ||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.15mm | 1000mm±0.15mm |
| Cutting Speed | 0-350cuts/min | 0-350cuts/min |
| Total Machine Weight | 16500kgs | 17500kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | Up to 350m or 400 cuts/min | Up to 350m or 400 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1720mm | 1720mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.6m×2.5m | 15.5m×4.6m×2.5m |
| Max. Stack Height | 1600mm | 1600mm |
| Series | ZNSD-1900 | |
| Model | ||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.15mm | 1000mm±0.15mm |
| Cutting Speed | 0-350cuts/min | 0-350cuts/min |
| Total Machine Weight | 17000kgs | 18000kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | Up to 350m or 400 cuts/min | Up to 350m or 400 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1920mm | 1920mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.8m×2.5m | 15.5m×4.8m×2.5m |
| Max. Stack Height | 1600mm | 1600mm |
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
